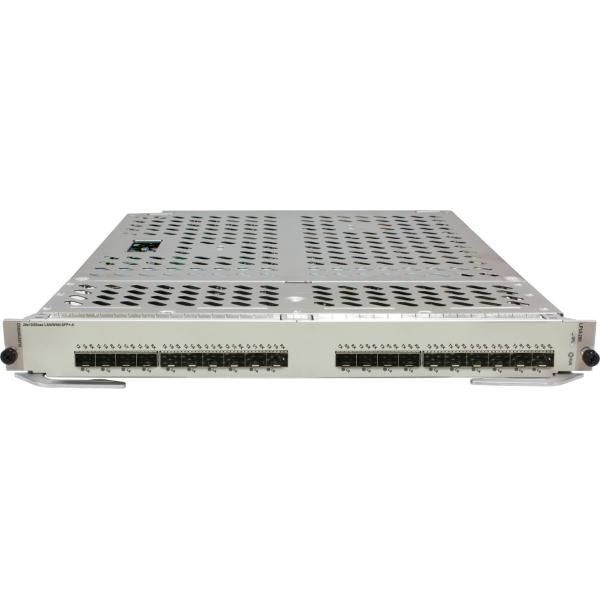

Panel
Table 10-1328 Buttons
| Name | Description |
|---|---|
| OFL | Board removal button. To remove a board, hold down the OFL button for about 6s until the OFL indicator turns on, and then remove the board. |
Table 10-1329 Indicators
| Name | Description |
|---|---|
| OFL (red) | If the indicator is steady on, the board can be removed. |
| RUN (green) | If the indicator blinks once every 2s (0.5 Hz), the system is running properly. If the indicator blinks twice every second (2 Hz), the board is starting and has not completed registration. |
| L/A (green) | If the indicator is steady on, the link is Up. If this indicator blinks, data is being transmitted or received. If the indicator is off, the link is Down. |
Table 10-1330 Service interfaces
| Interface Name | Interface Type | Connector Type | Description | Cable |
|---|---|---|---|---|
| 0/0 to 0/9 1/0 to 1/9 | 10G LAN/WAN or GE | SFP/SFP+ | Interface for inputting and outputting 10G LAN/WAN or GE optical signals | Optical fiber and twisted pair |
Functional Specifications
Table 10-1331 Functions and features
| Functions and Features | Remarks |
|---|---|
| Line-Rate capability | Supports 200G line-rate forwarding. |
| Reliability and availability | Hot swappable. |
| Restrictions and remarks | The interfaces working in WAN mode can function only as master interfaces. |
| GE/10GE autonegotiation supported | The interface supports GE/10GE auto-sensing. |
Technical Specifications
Table 10-1332 Interface specifications
| Attribute | Description |
|---|---|
| Optical type supported | 1.25Gbps eSFP CWDM optical module 1.25Gbps eSFP BIDI optical module 125M~2.67Gbps eSFP DWDM optical module 10Gbps SFP+ CWDM optical module 10Gbps SFP+ BIDI optical module |
| Working mode | Full-duplex |
| Compliant standard | IEEE 802.3 |
| Frame format | Ethernet_II, Ethernet_SAP and Ethernet_SNAP |
Table 10-1333 Board specifications
| Item | Specification |
|---|---|
| Dimensions (H x W x D) | 40.1 mm x 399.2 mm x 535.6 mm (1.58 in. x 15.72 in. x 21.09 in.) |
| Typical power consumption | 295.0 W |
| Typical heat dissipation | 957.1 BTU/hour |
| Weight | 9.9 kg (21.83 lb) |
| Ambient temperature | Long terms: 0 °C to 45 °C (32°F to 113°F) Short terms: -5 °C to 55 °C (23°F to 131°F) |
